Baofeng Radio Canada
Quansheng UV-K5(8) Amateur Radio NOAA Emergency Weather Receiver; IC Certified.
THIS RADIO TRANSMITS ON AMATEUR RADIO BANDS ONLY, AMATEUR RADIO LICENSE IS REQUIRED. NOT FOR COMMERCIAL USE. CAN NOT BE PROGRAMMED TO FRS/GMRS /Marine or Other Commercial Frequencies
- Frequency Range:
- 144-148 / 430-450 MHz (Tx / Rx)
Quansheng UV-K5(8) Amateur Radio
This professional-grade Quansheng UV-K5(8) Amateur Radio is equipped with NOAA Emergency Weather Receiver, providing reliable communication and emergency response in any weather condition. With advanced features such as long-range transmission and clear audio quality, this radio is perfect for amateur radio enthusiasts and emergency personnel alike.

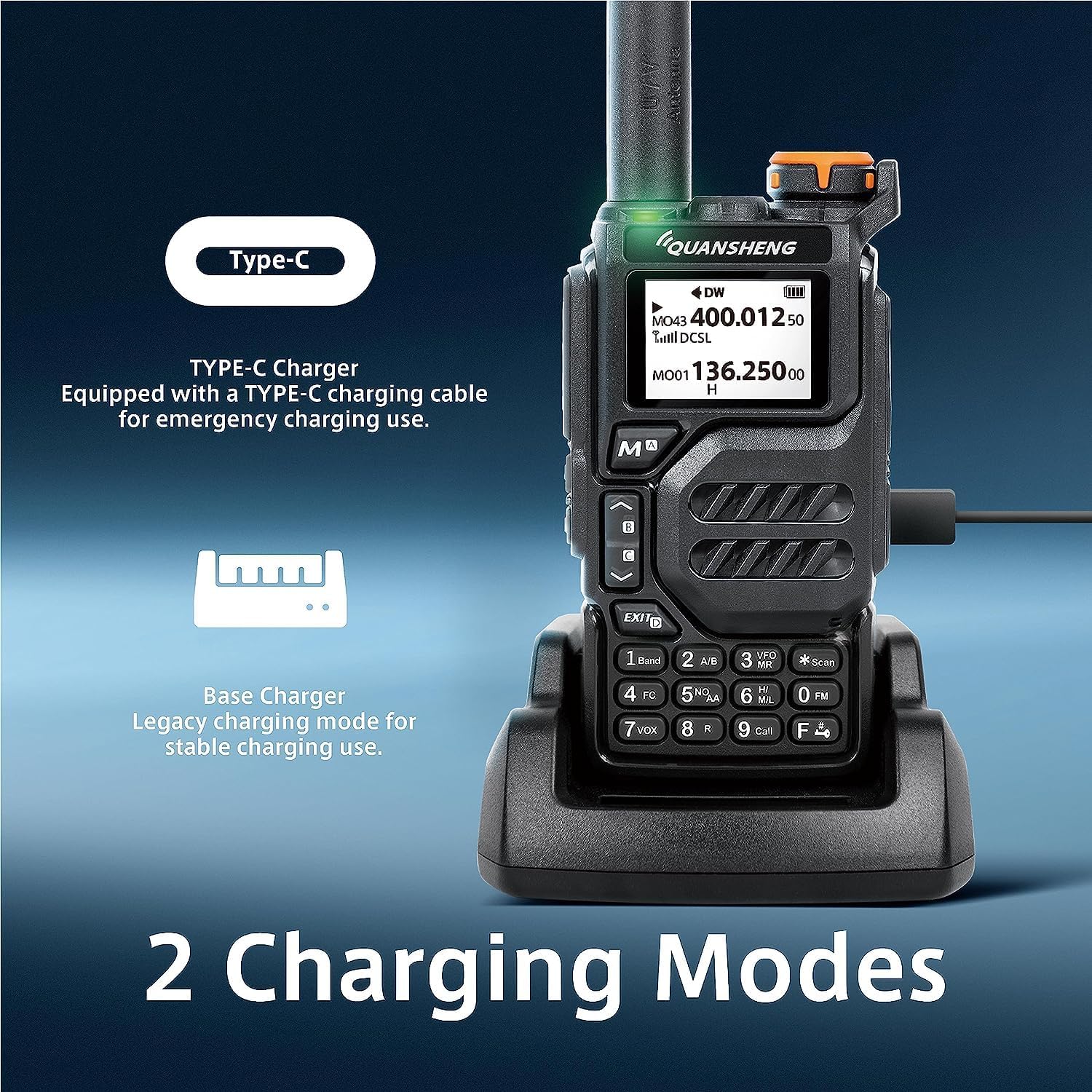

DTMF/10-Group Scrambler/Emergency Alert/FM Rdio/TYPE-C or Base Charger/Multi-Scan/CTCSS/DCS/One Key Call Channel/Jacklight/200 Channels/H&M&L Power/Wide&Narrow Band
Fast Copy One Channel, Act as Frequency Meter for some Devices, Wireless Radio Replication, IC ID: 30518-UVK5
| GENERAL SPECIFICATIONS | |
| Number of channels |
200 |
| Number of FM radios |
16 |
| Frequency stability |
±1ppm |
| Size |
115mmX60mmX37.5mm |
| Weight |
234g |
| Working temperature |
-20℃+60℃ |
| Antenna impedance |
50Ω |
| Modulation mode |
FM:11KOF3E(12.5KHz),16K0F3E(25KHz) |
| Number of NOAA channels |
10 |
| Battery capacity |
1600mAh |
| RECEIVE | |
| Reference Sensitivity |
FM(12dB SINAD) F1(50∽76) -121dBm F2(108∽135.9975) -121dBm F3(136∽173.9975) -123dBm F4(174∽349.9975) -123dBm F5(350∽399.9975) -123dBm F6(400∽469.9975) -123dBm F6(470∽599.9975) -121dBm WFM(20dB SINAD) WFM(76∽108) -110dBm AM(10dB S/N) F2(108∽135.9975) -113dBm |
| Audio Power |
≥0.5W |
| Audio Distortion |
≤10% |
| LAUNCH | |
| Frequency Band |
VHF: 144∽148MHz UHF: 430∽440MHz |
| Transmitting Power |
≤5W |
| Emission Current |
≤1.5A |
| Maximum Frequency Deviation |
≤5KHz(25KHz),≤2.5KHz(12.5KHz) |
| Modulation Distortion |
≤5% |
| Stray Power |
≤7.5uW |
| Adjacent Channel Power |
70dB(25KHz),60dB(12.5KHz) |
| Residual Modulation |
40dB |
