Retevis Ailunce HD2 Waterproof Dual Band GPS DMR Bluetooth Amateur Ham Radio

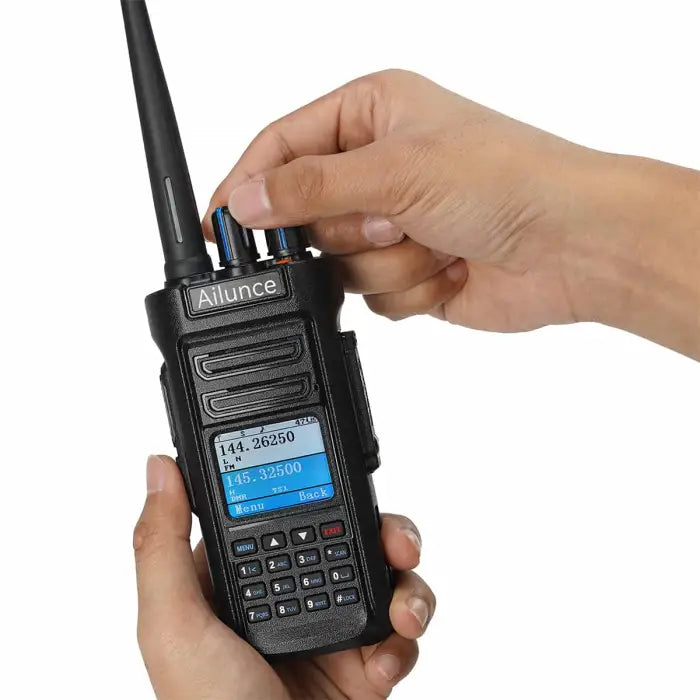

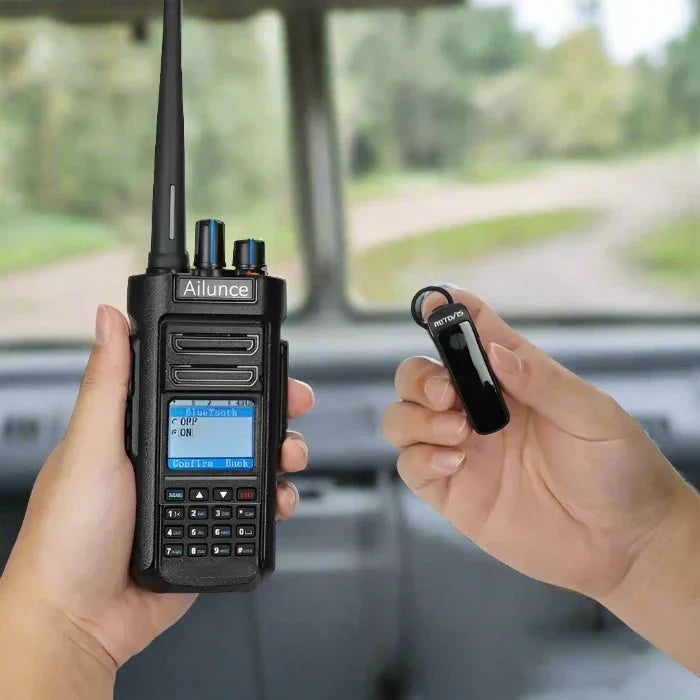

Retevis Ailunce HD2 is the ultimate ham radio—upgraded from HD1 with expanded capabilities. This IP67 waterproof DMR/FM handheld adds Bluetooth for wireless earpieces, SUB-PTT, and a massive contact store. Be ready for any environment with robust, modern features.
Ailunce HD2 • Dual-Band DMR/FM • IP67 • Bluetooth • SUB-PTT
Features
- Dual-band DMR/FM operation. Backwards compatible with legacy analog FM repeaters.
- Motorola Tier I & II compatibility, single/group/all call, remote kill/stun/activate.
- Up to 500,000 contacts + 1,000 priority contacts; promiscuous (contacts & color code).
- IP67 waterproof; rugged design for outdoor use.
- Scan modes: Time / Search / Carrier; Analog Monitor; standard CTCSS/DCS.

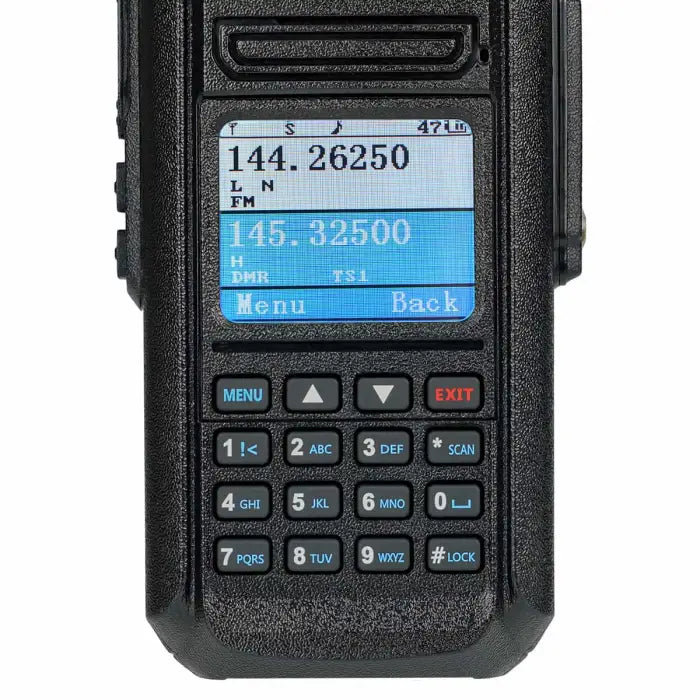

- 1.77″ color LCD with 10-level brightness; night mode; voice annunciation.
- Three keyboard lock modes; password lock; battery save.
- EU repeater tones: 1000/1450/1750/2100 Hz; up to 32 ID settings.

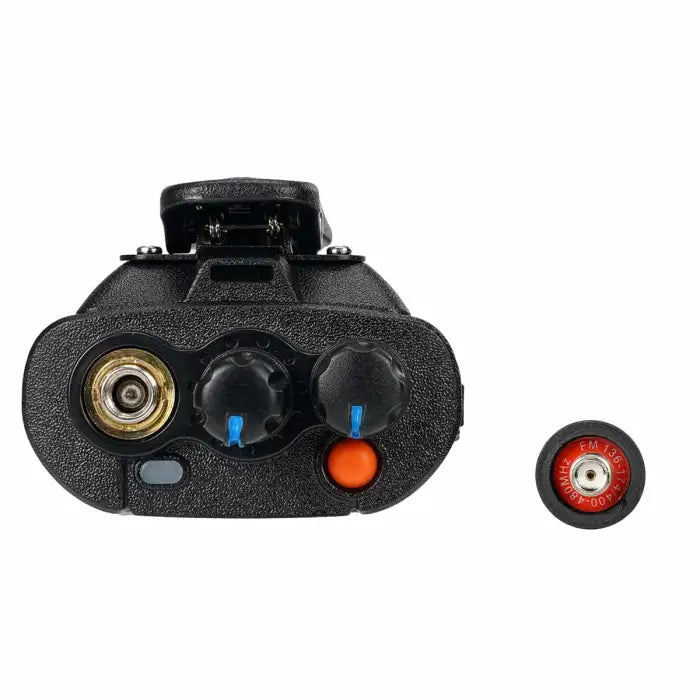

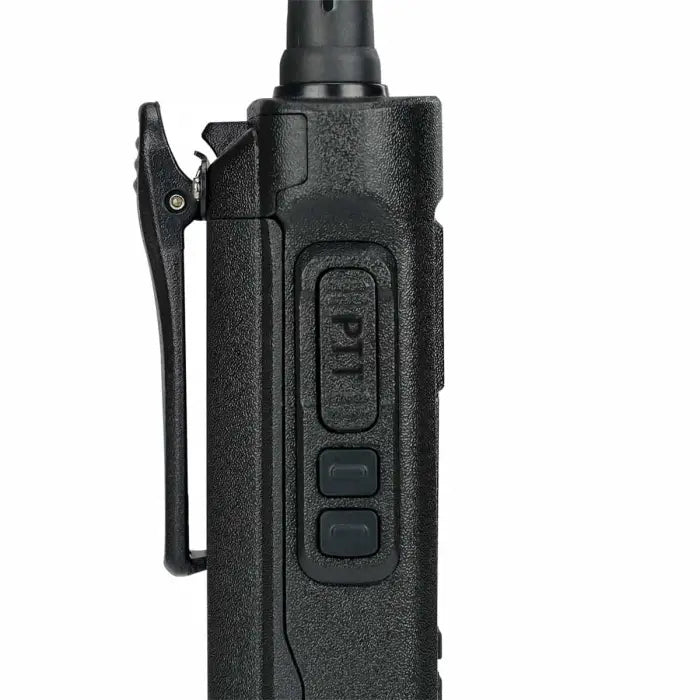

- Dual PTT; SUB-PTT; LED indicator.
- Encryption function* (see note below).
Specifications
| GENERAL | |
|---|---|
| Frequency Range | VHF TX: 144–148 MHz UHF TX: 430–450 MHz |
| Channel Numbers | 3000 |
| Channel Spacing | 25 kHz / 12.5 kHz |
| Input Voltage | Max 8.4 V — Max 540 mA |
| Battery Capacity | 3200 mAh |
| Battery Charging Input | 5 V 1 A |
| Frequency Stability | ±1.0 ppm |
| Operating Temperature | −10 ℃ to +40 ℃ |
| Antenna Impedance | 50 Ω |
| TRANSMIT | |
|---|---|
| Transmit Frequency | 144–148 MHz / 430–450 MHz |
| RF TX Power | High / Middle / Low / Ultra-low |
| Transmit Current | Analog ≤ 1.6 A • Digital ≤ 0.9 A |
| Modulation (Analog) | 12.5 kHz 11K0F3E • 25 kHz 16K0F3E |
| Modulation (Digital) | 12.5 kHz (data only): 7K60FXD • 12.5 kHz (data+voice): 7K60FXW |
| Modulation Distortion | ＜ 5% |
| Vocoder | AMBE+2™ |
| Adjacent Channel Power | 60 dBm (12.5 kHz) • 65 dBm (25 kHz) |
| Audio Response | +1 ~ −3 dB |
| Digital Protocol | ETSI-TS102 361-1/-2/-3 |
| RECEIVE | |
|---|---|
| Analog Sensitivity | 0.35 µV / −116 dBm (20 dB SINAD) • 0.22 µV / −120 dBm (typ.) |
| Digital Sensitivity | 0.30 µV / −117 dBm (BER 5%) • 0.70 µV / −110 dBm (BER 1%) |
| Adjacent Channel Selectivity | TIA603C: 65 dB • ETSI: 60 dB |
| Spurious Response | TIA603C: 75 dB • ETSI: 70 dB |
| Audio Response | +1 ~ −3 dB |
| Rated Audio Distortion | ≤ 3% (typ.) |
| Audio Power | ≥ 500 mW |
What’s in the Box

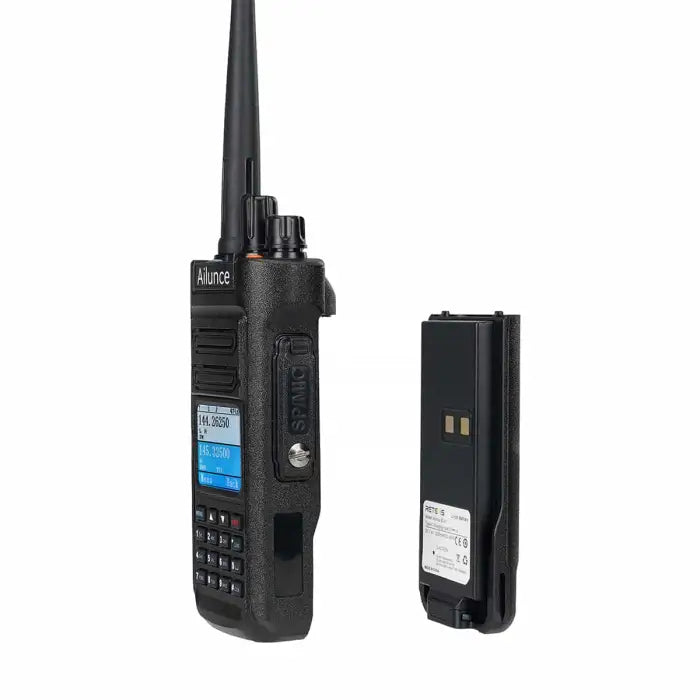

- HD2 Radio

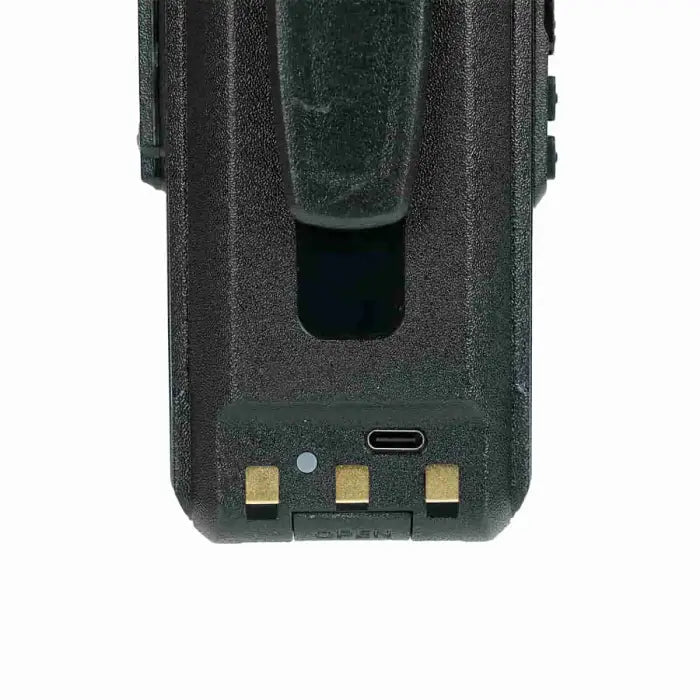

- Type-C Charge Battery
- USB Type-C Charging Cable
- Type-C Desktop Charger
- Antenna
- User’s Manual

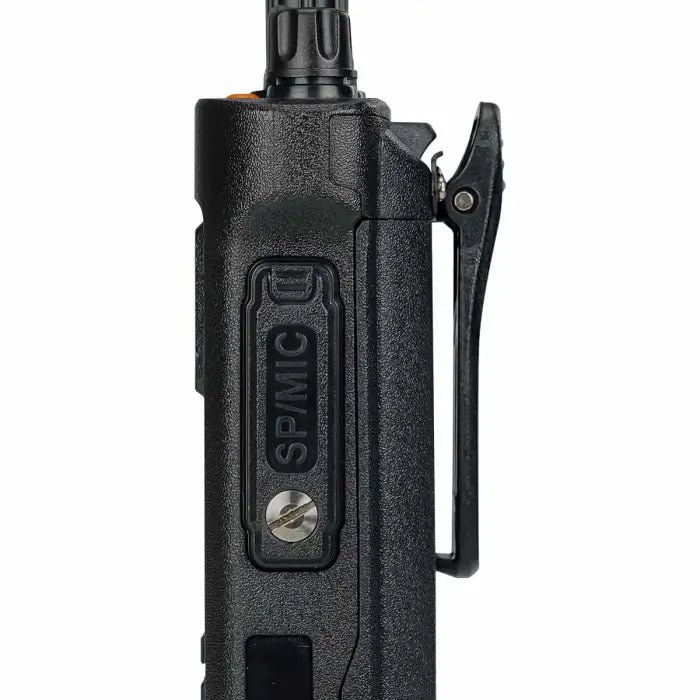

- Belt Clip
- Sling
- Bluetooth Earpiece
Important Notice
DMR radios require advanced Windows computer knowledge to program. We have a very basic tutorial HERE. We do not have the resources to assist further.
*Encryption functions are for permitted services only and are generally not allowed on amateur bands in many jurisdictions. Always follow local licensing and regulations.
