Retevis HS4 (Quad 5 AT-5555) 10+ Meter Mobile CB Style Amateur Ham Radio - 2024 Version With CTCSS/DCS
Updated for 2024. This popular 10 m mobile CB-style amateur radio now adds CTCSS/DCS tones and supports both electret and dynamic microphones via the standard 4-pin jack.

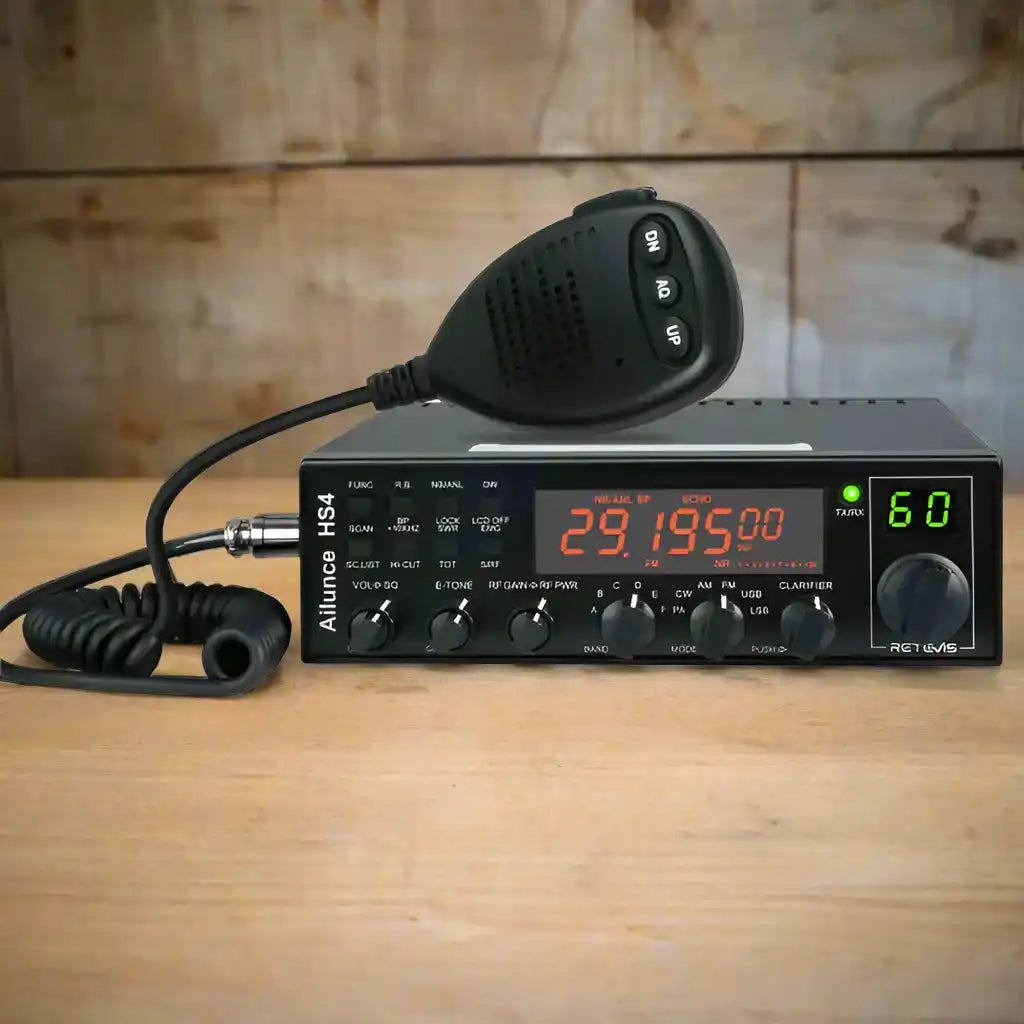

Retevis Ailunce HS4 10–12 Meter SSB Mobile Transceiver (AM/FM/PA/USB/LSB/CW)
Highlights

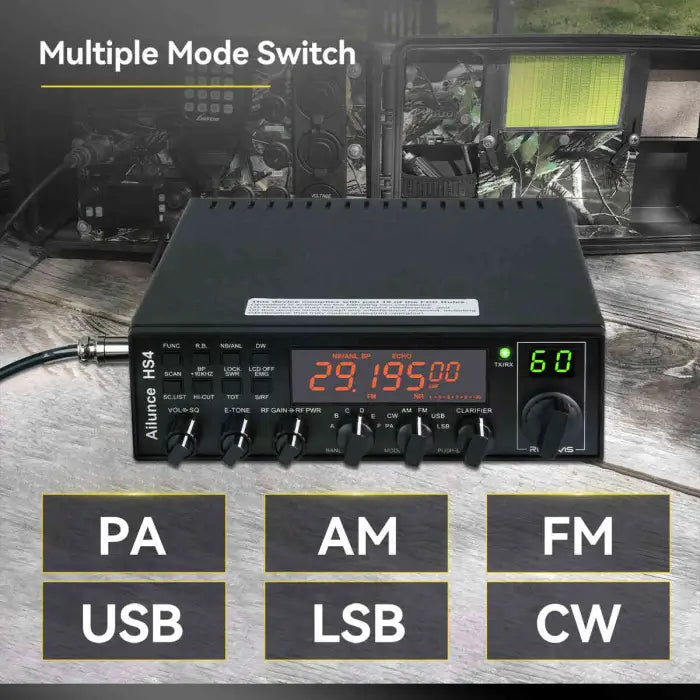

- 6 operational modes with CW key input (2.5 mm).

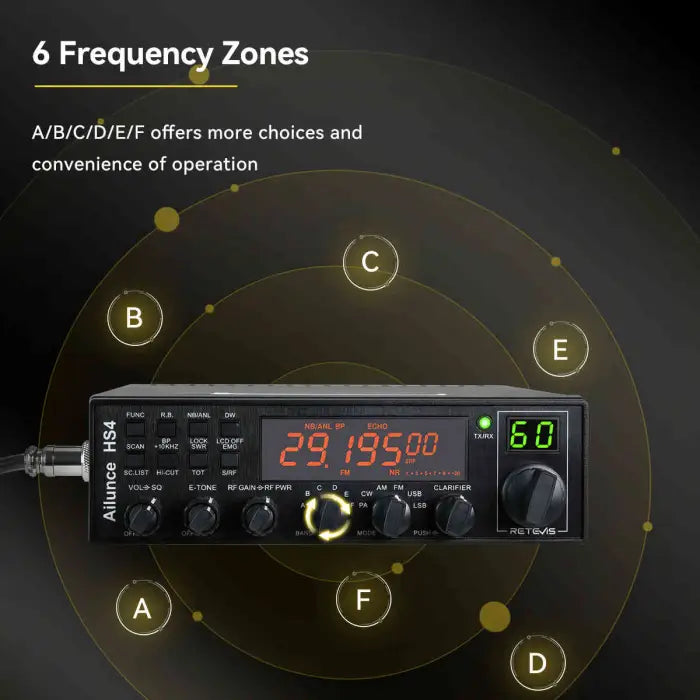

- 6 channelized zones (A/B/C/D/E/F) for flexible coverage.

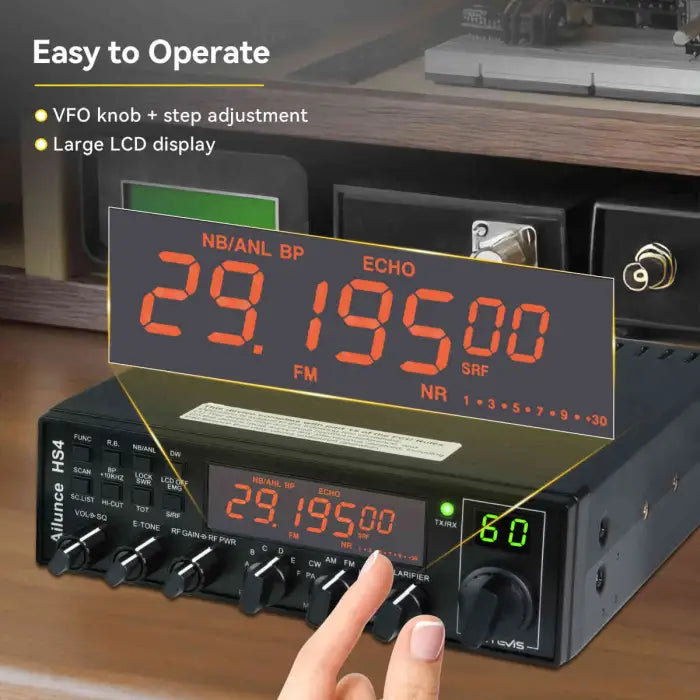

- Large LCD showing frequency & function status at a glance.

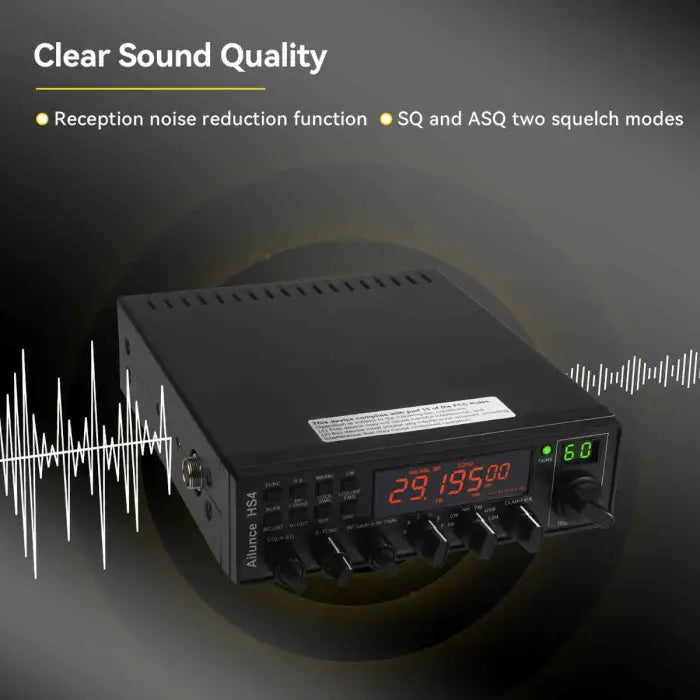

- Clear audio with squelch & noise-reduction features.
- 104 CTCSS/DCS tone options to filter co-channel chatter (not encryption).

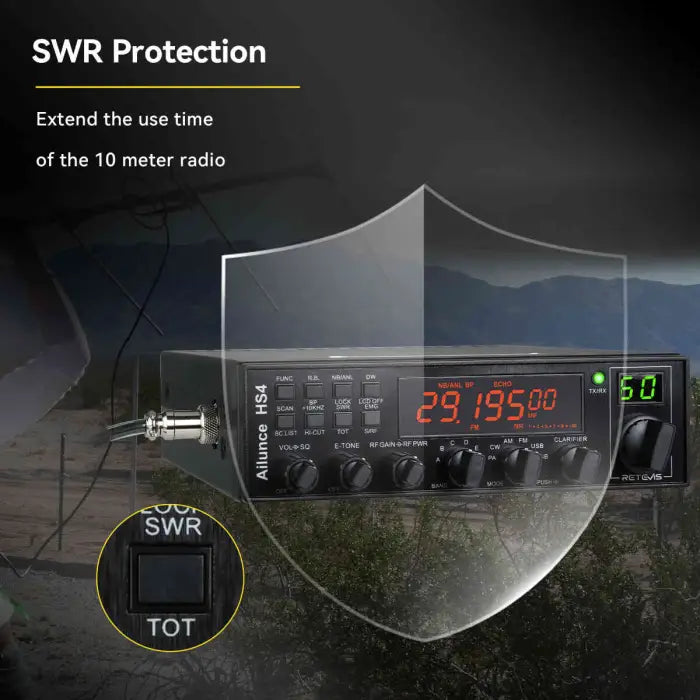

- SWR protection extends radio service life.

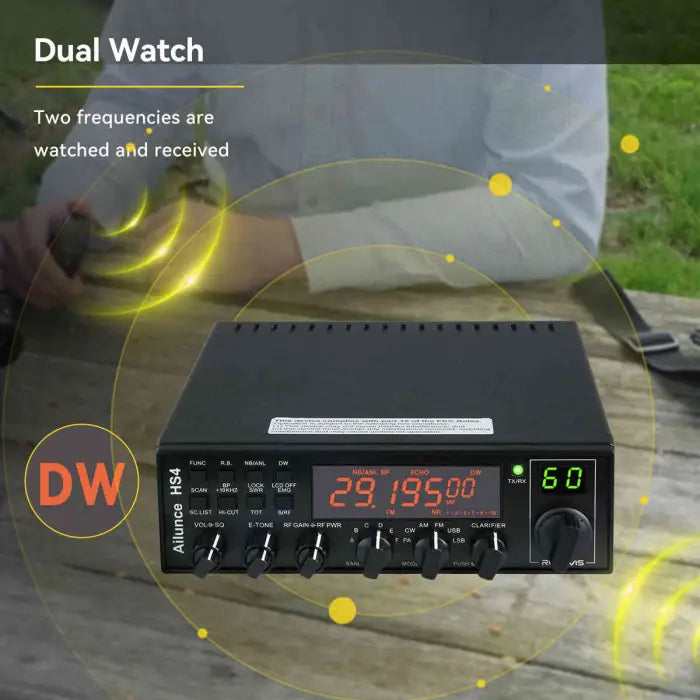

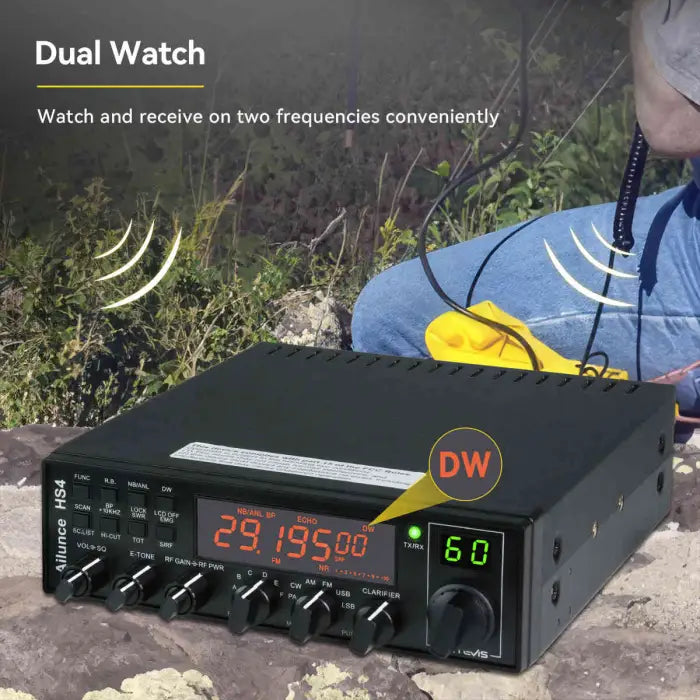

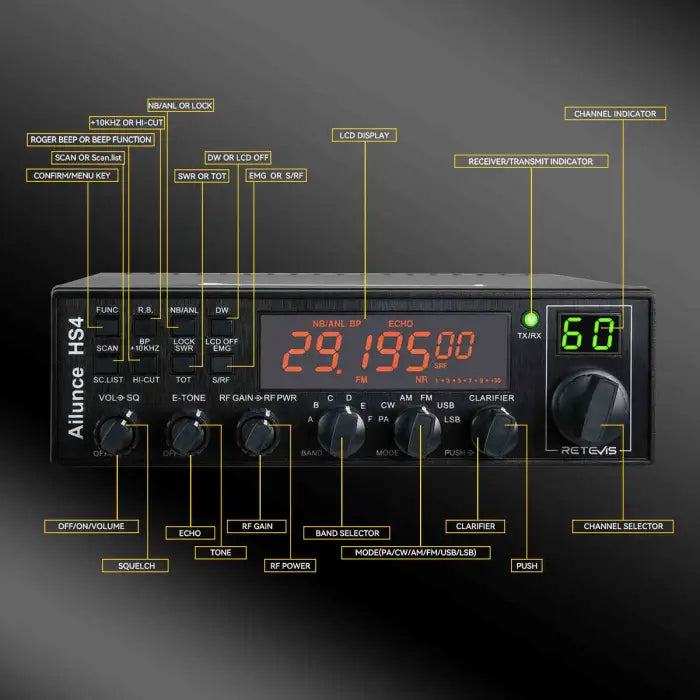

- Dual-watch, keypad lock, and VFO knob with 10/100/1k/10k Hz steps.

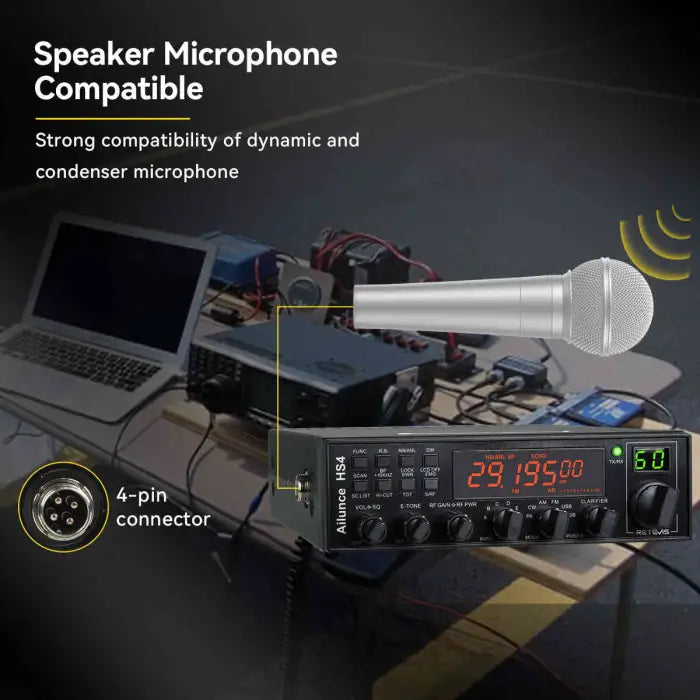

- Supports electret & dynamic microphones via standard 4-pin connector.
Specifications
| GENERAL | |
|---|---|
| Frequency Range | 28.000–29.700 MHz |
| Frequency Bands | A / B / C / D / E / F |
| Channels | 60 (programmable) |
| Frequency Control | PLL synthesizer |
| Step Options | 10 Hz, 100 Hz, 1 kHz, 10 kHz |
| Tolerance / Stability | 0.005% / 0.001% |
| Temperature Range | −30 °C to +50 °C |
| Microphone | Dynamic plug-in, PTT/UP/DN/ASQ switches, coiled cord |

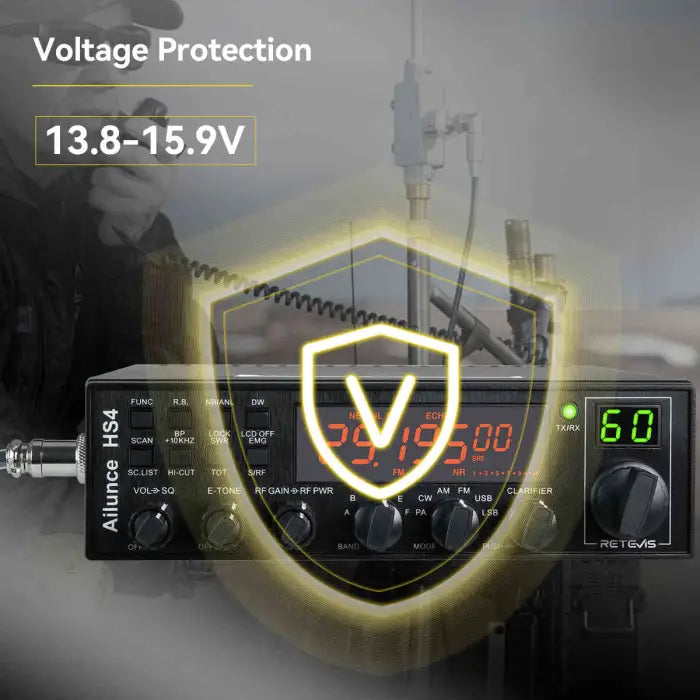

| Input Voltage | 13.8 V nominal (15.9 V max; 11.7 V min) TX: AM full-mod 6 A | RX: squelched 0.8 A | SSB 30 W PEP 9 A |

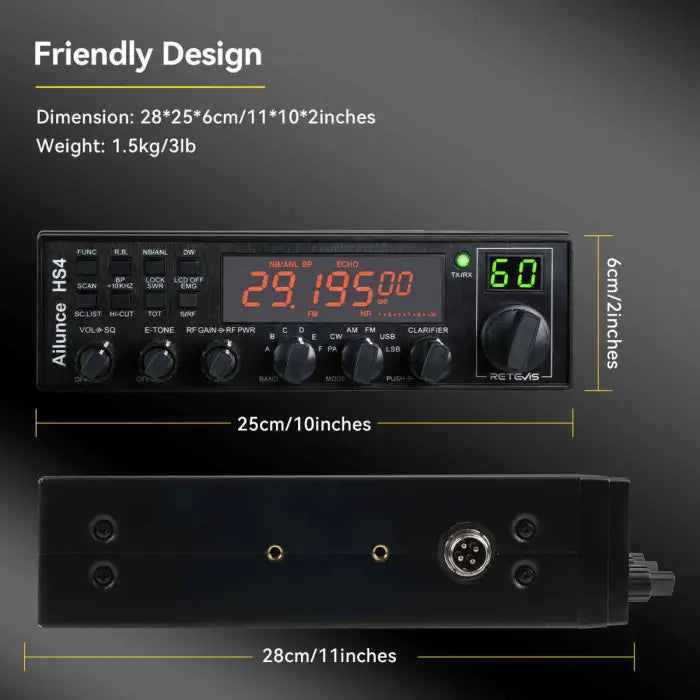

| Size | 28 × 25 × 6 cm |
| Weight | 1.5 kg |
| Antenna Connector | SO-239 (UHF) |
| TRANSMITTER | |
|---|---|
| Power Output (adj.) | AM/CW: 1–12 W • FM: 1–40 W • USB/LSB: 1–35 W |
| Modulation | AM, FM |
| Inter-modulation Distortion | SSB: 3rd < −25 dB, 5th < −35 dB |
| SSB Carrier Suppression | 55 dB |
| Unwanted Sideband | 50 dB |
| Frequency Response | AM/FM: 450–2500 Hz |
| Output Impedance | 50 Ω (unbalanced) |
| RECEIVER | |
|---|---|
| Sensitivity | SSB: 0.25 µV for 10 dB (S+N)/N @ >0.5 W audio AM: 1.0 µV for 10 dB (S+N)/N @ >0.5 W audio FM: 1.0 µV for 20 dB (S+N)/N @ >0.5 W audio |
| Selectivity | AM/FM: 6 dB @ 3 kHz, 50 dB @ 9 kHz • SSB: 6 dB @ 2.1 kHz, 60 dB @ 3.3 kHz |
| Image Rejection | > 65 dB |
| IF Frequency | AM/FM: 10.695 MHz (1st), 455 kHz (2nd) • SSB: 10.695 MHz |
| RF Gain Control | 45 dB adjustable |
| AGC | < 10 dB audio change for 10–100,000 µV inputs |
| Squelch | Adjustable; threshold < 0.5 µV • ASC (AM/FM) 0.5 µV |
| ANL / Noise Blanker | ANL switchable • RF-type NB (AM/FM/SSB) |
| Audio Output | 3 W into 8 Ω • Built-in 8 Ω round speaker • Ext. 8 Ω speaker disables internal |
| Frequency Response | 300–2800 Hz |
| Adjacent-Channel | 60 dB (AM/FM) • 70 dB (SSB) |
Amateur radio license required. CTCSS/DCS are tone squelch “privacy codes” that help filter interference—they are not encryption. Always follow local regulations.
