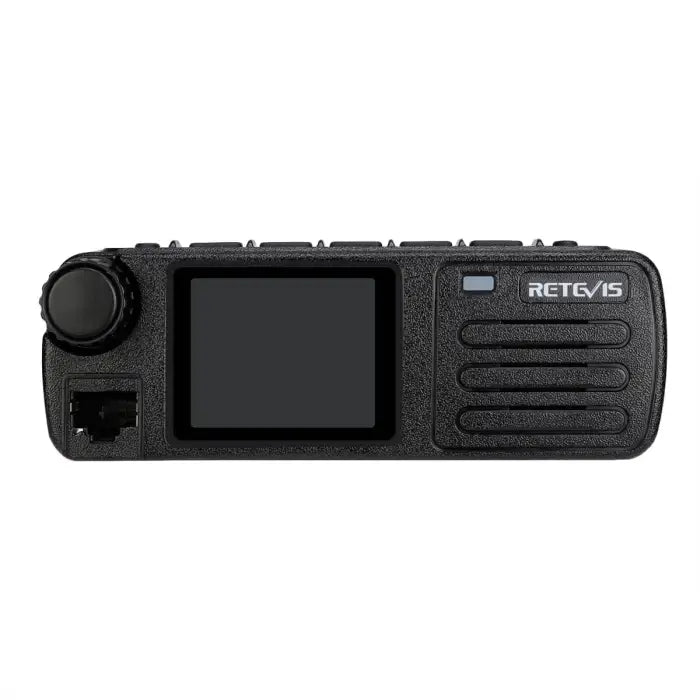

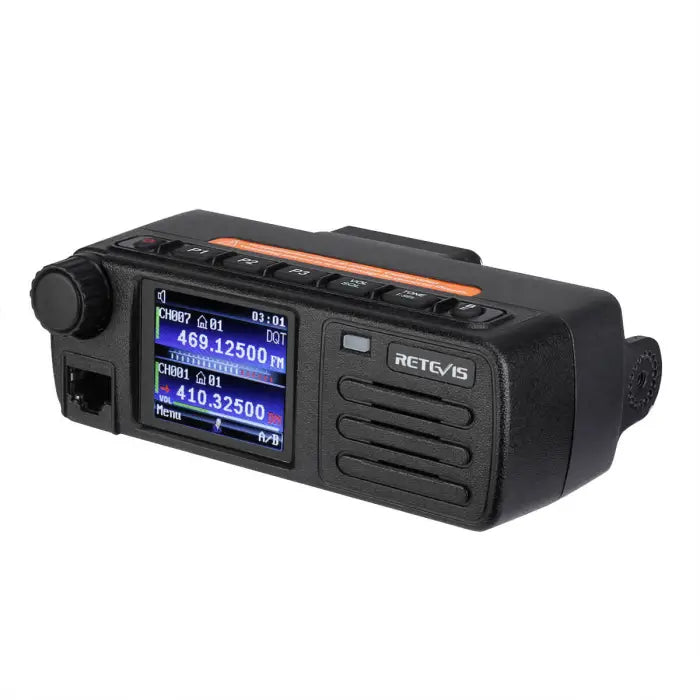

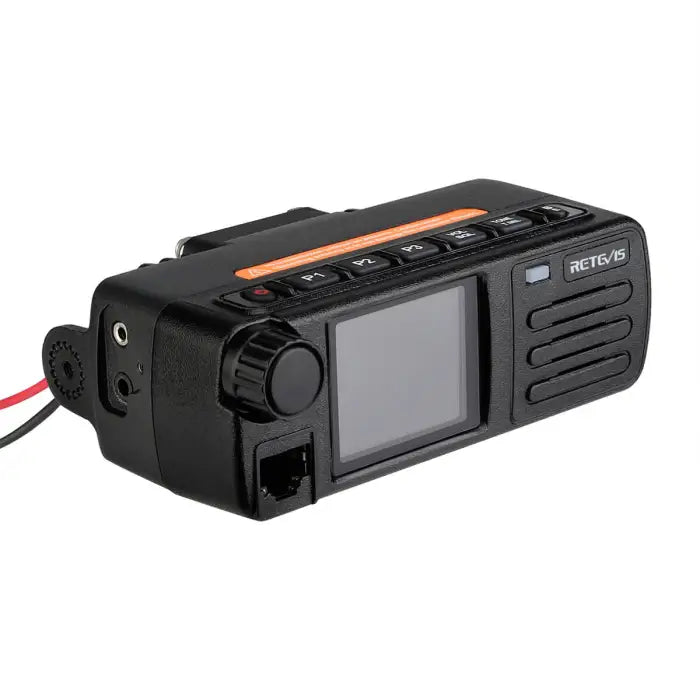

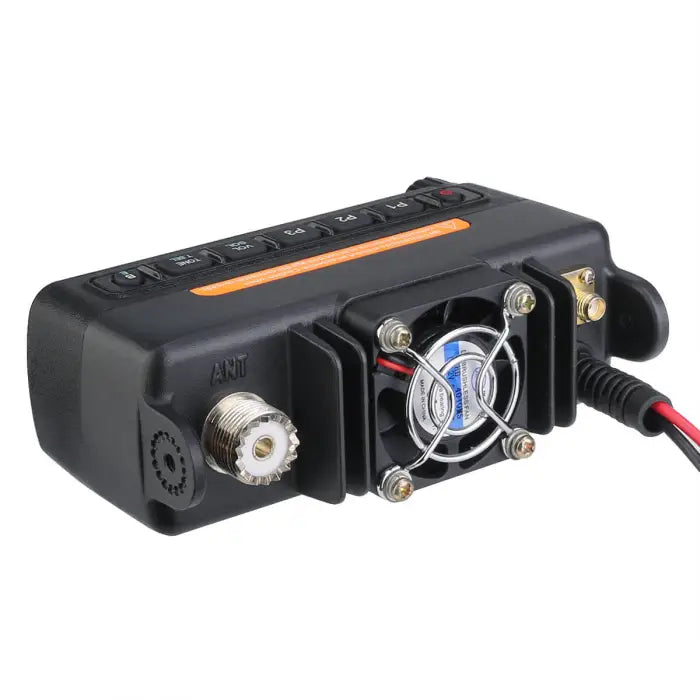

Retevis RT73 Dual Band GPS Mini DMR Mobile Amateur Ham APRS Radio

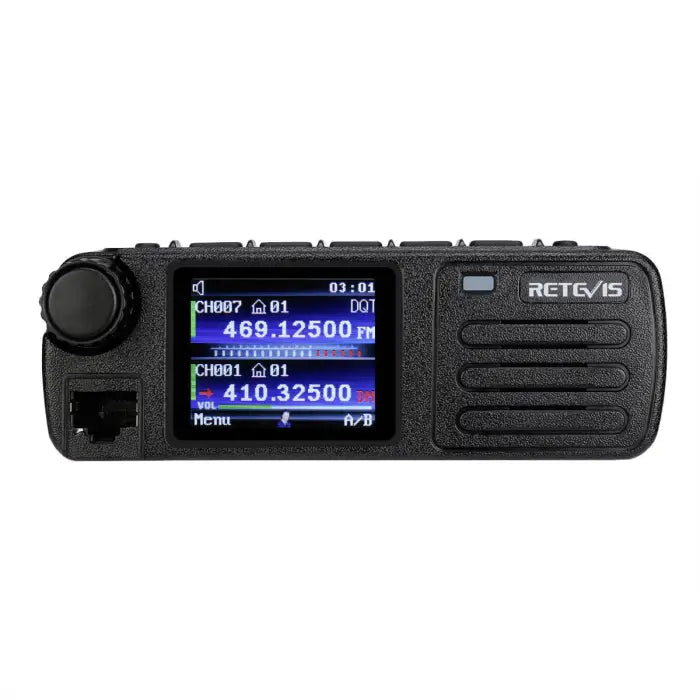

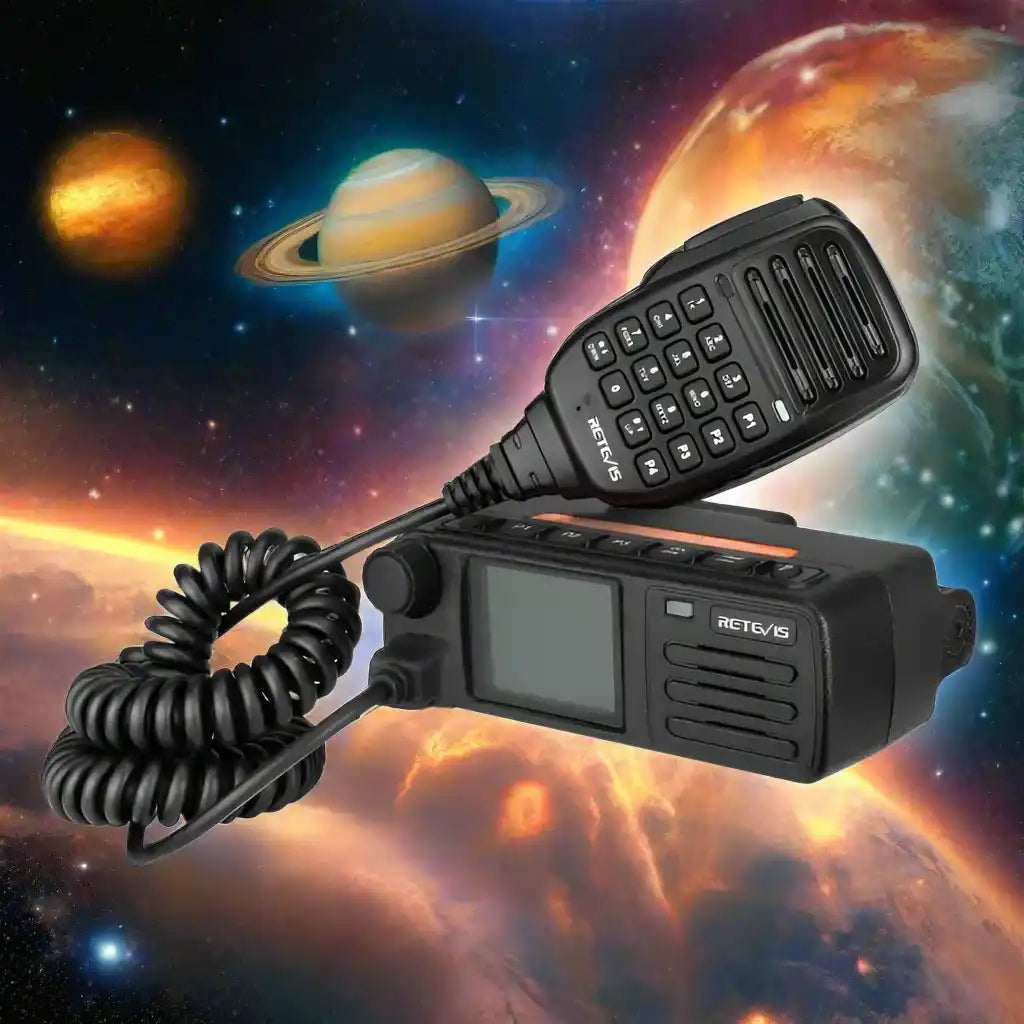

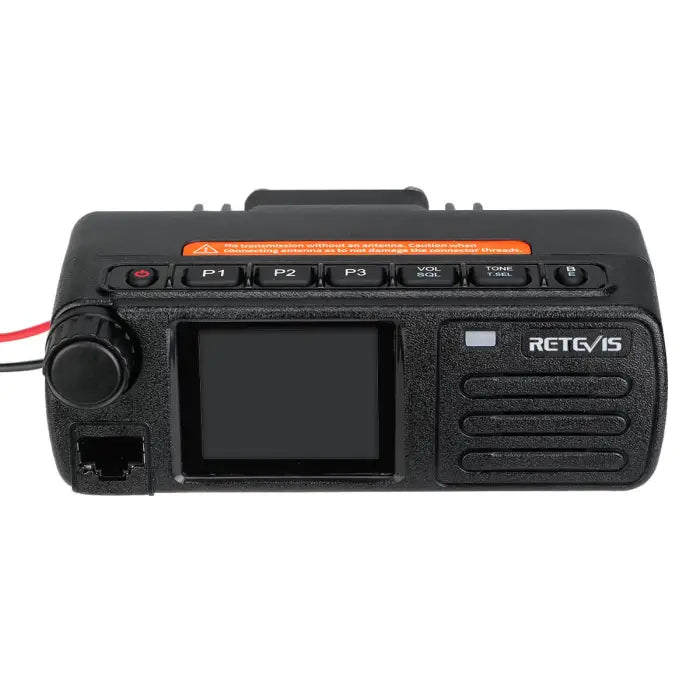

Introducing the Retevis RT73 Dual-Band GPS Mini DMR Mobile APRS Radio. Operates on 2 m & 70 cm with built-in GPS and APRS. Clear display, hand mic, and compact size make it ideal for vehicle installs.
Retevis RT73 • Dual-Band DMR/FM • GPS • APRS • Mini Mobile
The RT73 uses DMR digital technology (ETSI TS 102 361-1/-2 compliant) for clear audio and efficient spectrum use. It communicates with other amateur stations in either analog FM or digital DMR, supporting dual time slots, single/group calling, messaging, and handy TOT safeguards.
General
| GENERAL | |
|---|---|
| Product Number | RT73 |
| Frequency Range (Ham bands only) | UHF: 430–450 MHz | VHF: 144–148 MHz |
| Channel Number | 4,000 (250 channels/zone) |
| Channel Spacing | 12.5 kHz / 25 kHz |
| Standby Current | 160 mA |
| Operating Temperature | −20 ℃ ~ +50 ℃ |
| Antenna Impedance | 50 Ω |
| Dimensions | 121.5 × 65.5 × 42.5 mm |
| Rated Voltage | DC 13.8 V |
Transmitter
| TRANSMITTER | |
|---|---|
| RF Power | 5–20 W |
| Modulation Restriction | ±2.5 dB @ 12.5 kHz • ±5.0 dB @ 25 kHz |
| FM Hum & Noise | −40 dB @ 12.5 kHz • −45 dB @ 25 kHz |
| Conducted/Radiated Emission | < −36 dBm <1 GHz • < −30 dBm >1 GHz |
| Adjacent Channel Selectivity | −60 dB @ 12.5 kHz • −65 dB @ 25 kHz |
| Audio Response | +1 ~ −3 dB |
| Audio Distortion | 3% |
| Emission Current | 3 A |
Receiver
| RECEIVER | |
|---|---|
| Frequency Stability | ±1.5 ppm |
| Analog Sensitivity | 0.3 µV / 0.25 µV |
| Digital Sensitivity (5% BER) | 0.25 µV / 0.2 µV |
| Intermodulation | 65 dB |
| Adjacent Channel Selectivity | 60 dB @ 12.5 kHz • 65 dB @ 25 kHz |
| Spurious Rejection | 65 dB |
| Rated Audio | 500 mW |
| FM Hum & Noise | −40 dB @ 12.5 kHz • −45 dB @ 25 kHz |
| Audio Response | +1 ~ −3 dB |
| Receive Current | 350–460 mA |

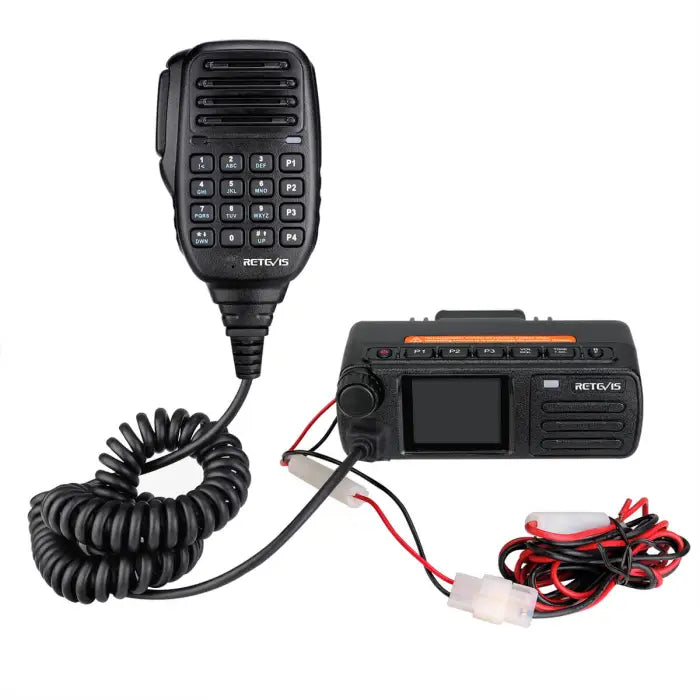

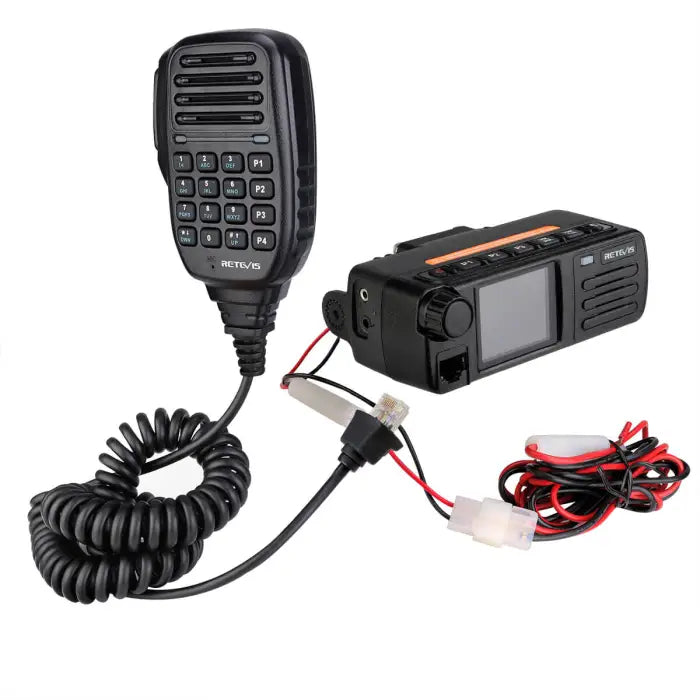

What’s in the Box
- Mini Mobile Radio

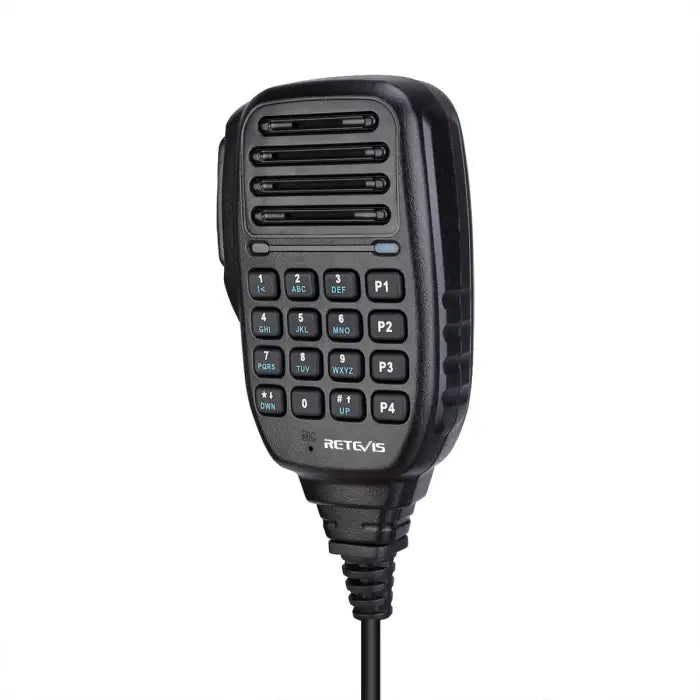

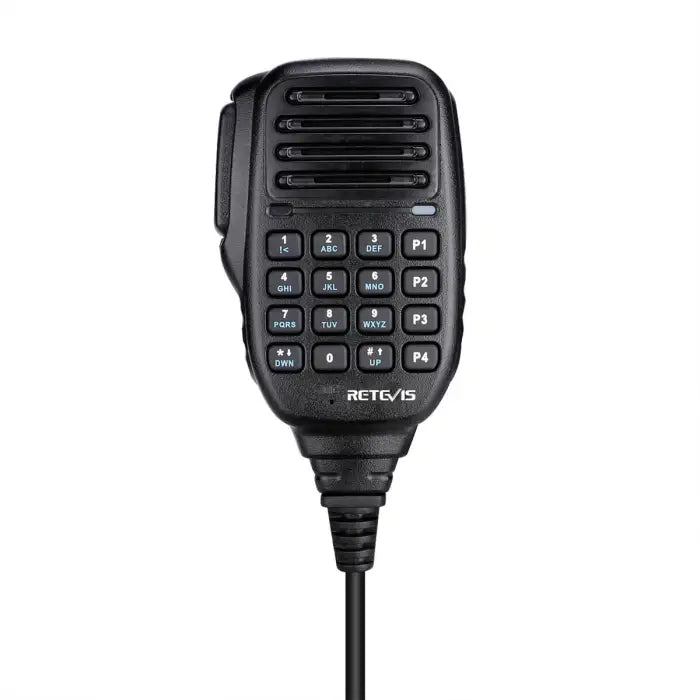

- Hand Microphone
- GPS Antenna
- Power Cord
- Bracket & Mounting Hardware
- Manual
*APRS here is basic; for tracker-style use cases evaluate settings in CPS first. Amateur license required; always follow local regulations and band plans.
